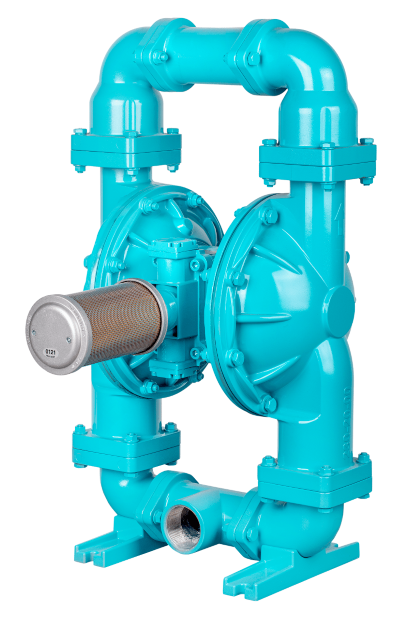

Plus Series Metallic Diaphragm Pumps

Connection Inlet-Outlet: 1``

Capacity Range: 0-160 lpm

Pump Head: 0-84 mwc

Max. Suction Lift: 6-8 meter

Max. Solid Particle Size: 4 mm

Pump Casing Materials: Aluminum, Cast Iron, Stainless Steel (316)

Pump Inner Materials: Neoprene, Buna-n, PTFE, FKM, Santoprene, EPDM

Connection Inlet-Outlet: 1½``

Capacity Range: 0-400 lpm

Pump Head: 0-84 mwc

Max. Suction Lift: 6-8 meter

Max. Solid Particle Size: 6 mm

Pump Casing Materials: Aluminum, Cast Iron, Stainless Steel (316)

Pump Inner Materials: Neoprene, Buna-n, PTFE, FKM, Santoprene, EPDM

Connection Inlet-Outlet: 2``

Capacity Range: 0-565 lpm

Pump Head: 0-84 mwc

Max. Suction Lift: 6-8 meter

Max. Solid Particle Size: 6 mm

Pump Casing Materials: Aluminum, Cast Iron, Stainless Steel (316)

Pump Inner Materials: Neoprene, Buna-n, PTFE, FKM, Santoprene, EPDM

Connection Inlet-Outlet: 3``

Capacity Range: 0-894 lpm

Pump Head: 0-84 mwc

Max. Suction Lift: 6-8 meter

Max. Solid Particle Size: 8 mm

Pump Casing Materials: Aluminum, Cast Iron, Stainless Steel (316)

Pump Inner Materials: Neoprene, Buna-n, PTFE, FKM, Santoprene, EPDM
